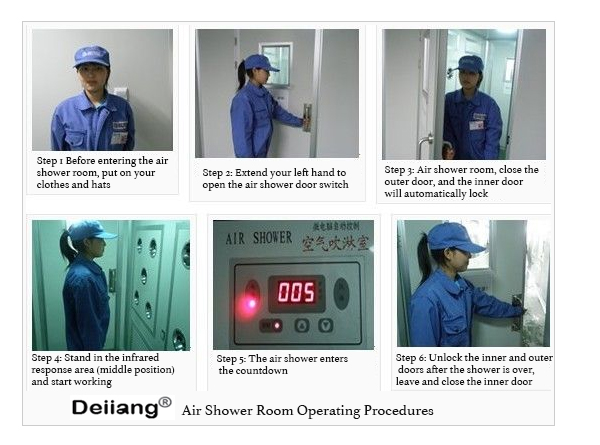

Instructions for use of stainless steel air shower room:

• When entering the workshop, employees approach the front door of the air shower room to check whether the power supply of the air shower room is turned on. If it is turned on normally and there is no one in the air shower room, they can manually open the door to enter the air shower room (the automatic air shower room is sensed by the infrared sensor and the air shower room door opens automatically).

• After entering the air shower room, the front door is automatically closed, the internal lighting lights up, and the shower starts at the same time.

• After 6-10 seconds (time adjustable), the shower is completed, the internal work stops, and the personnel can open the front door to walk out of the air shower room (the front of the automatic air shower room opens automatically) 4. Electrical system: Waterproof level>IP65 (accessories are Delixi and Omron. The air shower room uses three-phase four-wire).

Basic configuration and description of standard stainless steel air shower room:

• External dimensions (W*D*H): 1400mm*2000mm*2100mm; Air shower area dimensions (W*D*H): 800mm*1900mm*1960mm

• Air shower nozzle: 360-degree rotatable embedded mirror stainless steel nozzle, 24 pieces, distributed on the left and right sides, the blowing direction can be rotated;

• Purification fan: Special purification centrifugal low-noise fan, 4 units, air volume: 2000 air volume/hour;

• Blowing wind speed: Double-sided blowing, 25-30m/s, high wind speed to ensure the shower effect;

• Blowing time: LED LCD blue screen displays the blowing time, (0-99s adjustable);

• Control system: PLC system, the program can be customized according to requirements, with 0TS fault display function (the fault code is displayed directly on the screen); 7. Control panel: Control panel soft contact control switch, with keyboard hidden lock protection, can effectively prevent Prevent employees from setting it at will;

• Photoelectric switch: Japanese OMRON photoelectric switch, model E3F3-R61, 12-24VDC power supply, automatic induction shower, intelligent warm Chinese voice prompt system: 9. Filtration efficiency: three-stage filtration, primary and secondary efficiency pre-filter 45% (5um), quantity 4, 600*350*10mm, washable and replaceable, primary filter is the main plate of the air shower room directly punched as a whole

• Beautiful and strong, high air volume: 10. High efficiency filter 99.99% (0.3um) filtration efficiency, quantity 4, specification 600*600*120mm, the filter is installed flat and firmly, there is no gap between the filter and the frame and the frame and the wall plate, and the high efficiency filter and the frame are sealed with EVA sealing strips;

• Main material of the box: 1.2m cold-rolled steel plate with paint inside and outside, the surface is pickled, phosphated, degreased, derusted, and baked at high temperature; (optional) Main material of the box: Made of 1.2m SUs304 stainless steel inside and outside, the surface is brushed or broken, special for food grade, 304 stainless steel is widely used in elevator decoration and kitchen appliances; (optional) 12. Sealing performance: finely made, beautiful and generous. Adopting an assembled structure, sealing strips are required at the joints, and there is no light leakage or air leakage inside after the overall equipment is installed.

• Double door: Made of all stainless steel (SUS304), with 3C certified tempered glass window on the top, and stainless steel flat surface on the bottom, no bumps and corners, reducing dead angles; three 3M thick stainless steel hinges to ensure that the door is strong and durable, the door and door frame are combined flat, firm and beautiful, with good sealing performance and flexible door opening;

• Door closer: Adopt German "Dorma" brand door closer, model: TS68, quantity: 2, manual door opening, automatic door closing: (Note: Dorma door closer is a special door closer for KFC stores in China);

• 1 Double door electronic interlock; When air showering, both doors are locked at the same time, and cannot be opened before the time is up, to ensure that employees are forced to blow shower; usually electronic interlock, only one of the doors can be opened: Double door electric lock is China's first brand of electric control lock "LCJ" EC200 model negative electric bolt lock, quantity: 2 pairs:

• Lighting: Embedded LED lighting 1 * 7W , energy saving and environmental protection; lighting with delay function, intelligent temperature and energy saving: 17. Power supply: 380V 50Hz (can be customized for customers non-standard 110V, 460V, 60Hz and other non-standard voltage frequency air shower room)

Requirements for the use of stainless steel air showers:

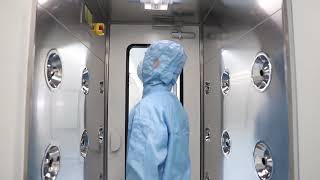

• Reducing pollution problems: As the only way to enter the clean room, the air shower is designed to reduce the pollution that may be caused during the entry and exit process. By installing a fully functional "airlock", the particulate pollution in the air can be effectively reduced, ensuring that people and objects are sprayed with clean air with high efficiency filtration when passing through the air shower. The high wind speed of more than 25m/s can effectively remove particles.

• Maintaining cleanliness: In order to maintain the cleanliness of the clean room environment, before entering the clean room, personnel need to take off their outer clothes and remove items such as watches, mobile phones, and accessories in the outer dressing room. Then wear clean clothes, hats, masks, and gloves in the inner dressing room.

• Operation steps: After entering the stainless steel air shower room, open the air shower door, the door will automatically close immediately, and the infrared sensor will start the air shower for a 15-second shower process.

Stainless steel air shower room troubleshooting:

Low wind speed treatment: If the air shower room wind speed is low, you should immediately check whether the filter is too dusty and need to replace the filter. Normally, it is replaced every 1-6 months, and the high-efficiency filter is usually replaced every 6-12 months.

• Automatic sensing failure: If the air shower room cannot automatically sense the shower, check the light sensing system in the lower right corner of the box to ensure that the equipment is normal. When the emergency stop button is red, the air shower room will not blow. Press the emergency stop button again to resume normal operation.

• Fan problem: If the air shower room fan reverses or the wind speed is abnormally low, check whether the 380V three-phase four-wire line is reversed. Reverse connection may cause the fan to not work or reduce the wind speed, and in severe cases, the entire circuit board will be damaged.

The above are the usage requirements and troubleshooting methods of "Deiiang Blade™ Stainless Steel Air Shower Room" to ensure the normal operation of the equipment and maintain a clean environment.
